In the early days of load balancing and application delivery there was a lot of confusion about proxy-based architectures and in particular the definition of a full-proxy architecture. Understanding what a full-proxy is will be increasingly important as we continue to re-architect the data center to support a more mobile, virtualized infrastructure in the quest to realize IT as a Service.

The reason there is a distinction made between “proxy” and “full-proxy” stems from the handling of connections as they flow through the device. All proxies sit between two entities – in the Internet age almost always “client” and “server” – and mediate connections. While all full-proxies are proxies, the converse is not true. Not all proxies are full-proxies and it is this distinction that needs to be made when making decisions that will impact the data center architecture.



This capability translates to broader usage in data center architecture by enabling the implementation of an application delivery tier in which operational risk can be addressed through the enforcement of various policies. In effect, we’re created a full-proxy data center architecture in which the application delivery tier as a whole serves as the “full proxy” that mediates between the clients and the applications.

A full-proxy data center architecture installs a digital “air gap” between the client and applications by serving as the aggregation (and conversely disaggregation) point for services. Because all communication is funneled through virtualized applications and services at the application delivery tier, it serves as a strategic point of control at which delivery policies addressing operational risk (performance, availability, security) can be enforced.

A full-proxy data center architecture further has the advantage of isolating end-users from the volatility inherent in highly virtualized and dynamic environments such as cloud computing . It enables solutions such as those used to overcome limitations with virtualization technology, such as those encountered with pod-architectural constraints in VMware View deployments. Traditional access management technologies, for example, are tightly coupled to host names and IP addresses. In a highly virtualized or cloud computing environment, this constraint may spell disaster for either performance or ability to function, or both.  By implementing access management in the application delivery tier – on a full-proxy device – volatility is managed through virtualization of the resources, allowing the application delivery controller to worry about details such as IP address and VLAN segments, freeing the access management solution to concern itself with determining whether this user on this device from that location is allowed to access a given resource.

Basically, we’re taking the concept of a full-proxy and expanded it outward to the architecture. Inserting an “application delivery tier” allows for an agile, flexible architecture more supportive of the rapid changes today’s IT organizations must deal with.

Such a tier also provides an effective means to combat modern attacks. Because of its ability to isolate applications, services, and even infrastructure resources, an application delivery tier improves an organizations’ capability to withstand the onslaught of a concerted DDoS attack. The magnitude of difference between the connection capacity of an application delivery controller and most infrastructure (and all servers) gives the entire architecture a higher resiliency in the face of overwhelming connections. This ensures better availability and, when coupled with virtual infrastructure that can scale on-demand when necessary, can also maintain performance levels required by business concerns.

A full-proxy data center architecture is an invaluable asset to IT organizations in meeting the challenges of volatility both inside and outside the data center.

What is a packet-based design?

A network device with a packet-based (or packet-by-packet) design is located in the middle of a stream of communications, but is not an endpoint for those communications; it just passes the packets through. Often a device that operates on a packet-by-packet basis does have some knowledge of the protocols flowing through it, but is far from being a real protocol endpoint. The speed of these devices is primarily based on not having to understand the entire protocol stack, shortcutting the amount of work needed to handle traffic. For example, with TCP/IP, this type of device might only understand the protocols well enough to rewrite the IP addresses and TCP ports; only about half of the entire stack.

As iRules is to network traffic, iControl is to F5 configurations. iControl is our open, web services based API that allows complete, dynamic, programmatic control of F5 configuration objects. This means you can add, modify or remove bits from your F5 device on the fly, automatically. Whether you’re looking to add a list of Virtual Servers, shut down half of the 400 members in a pool for an upgrade, or track more advanced stats by writing a script to poll certain data.; the uses for iControl are near limitless.

B. Explain the use of iControl

iControl Dev Central

F5 iApps is a powerful set of features in the BIG-IP system that provides
a new way to architect application delivery in the data center. It gives you a holistic, application-centric view of how applications are managed and delivered inside, outside, and beyond the data center.

F5 iRules is a flexible, programmatic interface that makes it possible to extend and customize the functionality of the BIG-IP system. As an event-driven scripting language, iRules gives you the ability to architect application delivery solutions that improve the security, resiliency, and scale of applications in the data center.

iRules provides unprecedented control to directly manipulate and manage any IP application traffic using an easy-to-learn scripting syntax. A robust and active community at F5 DevCentralprovides a wealth of existing iRules that can be customized to fit your unique application requirements. With free registration on DevCentral, you have access to hundreds of proven iRules that can mitigate threats and extend the capabilities of your application delivery network.

Key benefits

• Provide unified global access

• Consolidate and simplify

• Centralize access control

• Ensure superior access and endpoint security

• Obtain flexibility, high performance, and scalability

• Ensure app security and availability

• Reduce costs and enable compliance

• Get out-of-the-box app security policies

• Improve app security and performance

• Deploy flexibly and incorporate external intelligence

• Deliver applications rapidly and reliably

• Customize and automate with programmable infrastructure

• Transition to SDN and cloud networks

• Easily deploy and manage applications

• Secure your critical applications

A. Explain the purpose and functionality of HTTP

The Hypertext Transfer Protocol (HTTP) is an application protocol for distributed, collaborative, hypermedia information systems.^[1] HTTP is the foundation of data communication for the World Wide Web.

Hypertext is structured text that uses logical links (hyperlinks) between nodes containing text. HTTP is the protocol to exchange or transfer hypertext.

The standards development of HTTP was coordinated by the Internet Engineering Task Force (IETF) and the World Wide Web Consortium (W3C), culminating in the publication of a series of Requests for Comments (RFCs), most notably RFC 2616 (June 1999), which defines HTTP/1.1, the version of HTTP in common use.

HTTP functions as a request-response protocol in the client-server computing model. A web browser, for example, may be the client and an application running on a computer hosting a web site may be the server. The client submits an HTTP request message to the server. The server, which provides resources such asHTML files and other content, or performs other functions on behalf of the client, returns a response message to the client. The response contains completion status information about the request and may also contain requested content in its message body.

A web browser is an example of a user agent (UA). Other types of user agent include the indexing software used by search providers (web crawlers), voice browsers, mobile apps and other software that accesses, consumes or displays web content.

HTTP is designed to permit intermediate network elements to improve or enable communications between clients and servers. High-traffic websites often benefit from web cache servers that deliver content on behalf of upstream servers to improve response time. Web browsers cache previously accessed web resources and reuse them when possible to reduce network traffic. HTTP proxy servers at private network boundaries can facilitate communication for clients without a globally routable address, by relaying messages with external servers.

HTTP is an application layer protocol designed within the framework of the Internet Protocol Suite. Its definition presumes an underlying and reliable transport layerprotocol,^[2] and Transmission Control Protocol (TCP) is commonly used. However HTTP can use unreliable protocols such as the User Datagram Protocol (UDP), for example in Simple Service Discovery Protocol (SSDP).

HTTP resources are identified and located on the network by Uniform Resource Identifiers (URIs)—or, more specifically, Uniform Resource Locators (URLs)—using the http or https URI schemes. URIs and hyperlinks in Hypertext Markup Language (HTML) documents form webs of inter-linked hypertext documents.

B. Differentiate between HTTP versions

HTTP/1.1 is a revision of the original HTTP (HTTP/1.0). In HTTP/1.0 a separate connection to the same server is made for every resource request. HTTP/1.1 can reuse a connection multiple times to download images, scripts, stylesheets et cetera after the page has been delivered. HTTP/1.1 communications therefore experience less latency as the establishment of TCP connections presents considerable overhead.

Goals for HTTP 2.0 include asynchronous connection multiplexing, header compression, and request-response pipelining, while maintaining full backwards compatibility with the transaction semantics of HTTP 1.1. It comes as an answer to the rise of SPDY, an HTTP compatible protocol launched by Google^[2] and supported in Chrome, Opera, Firefox, and Amazon Silk browsers,^[3] as well as the pressure from alternative protocols like WebSocket.

The httpbis working group considered Google’s SPDY protocol, Microsoft‘s HTTP Speed+Mobility proposal (SPDY based),^[4] and Network-Friendly HTTP Upgrade.^[5] In July 2012 Facebook provided feedback on each of the proposals and recommended HTTP 2.0 be based on SPDY.^[6] The initial draft of HTTP 2.0 was published in November 2012 and is based on a straight copy of SPDY.^[7]

Many of the architectural approaches in these protocols were explored earlier by the World Wide Web Consortium‘s HTTP-NG working group. Work on the HTTP-NG project was suspended in 1998.^[8]

C. Interpret HTTP status codes

In HTTP/1.0 and since, the first line of the HTTP response is called the status line and includes a numeric status code (such as “404“) and a textual reason phrase (such as “Not Found”). The way the user agent handles the response primarily depends on the code and secondarily on the response headers. Custom status codes can be used since, if the user agent encounters a code it does not recognize, it can use the first digit of the code to determine the general class of the response.^[20]

Also, the standard reason phrases are only recommendations and can be replaced with “local equivalents” at the web developer‘s discretion. If the status code indicated a problem, the user agent might display the reason phrase to the user to provide further information about the nature of the problem. The standard also allows the user agent to attempt to interpret the reason phrase, though this might be unwise since the standard explicitly specifies that status codes are machine-readable and reason phrases are human-readable.

1xx Informational[edit|edit source]

Request received, continuing process.^[2]

This class of status code indicates a provisional response, consisting only of the Status-Line and optional headers, and is terminated by an empty line. Since HTTP/1.0 did not define any 1xx status codes, servers must not send a 1xx response to an HTTP/1.0 client except under experimental conditions.

100 Continue

This means that the server has received the request headers, and that the client should proceed to send the request body (in the case of a request for which a body needs to be sent; for example, aPOST request). If the request body is large, sending it to a server when a request has already been rejected based upon inappropriate headers is inefficient. To have a server check if the request could be accepted based on the request’s headers alone, a client must send Expect: 100-continue as a header in its initial request^[2] and check if a 100 Continue status code is received in response before continuing (or receive 417 Expectation Failed and not continue).^[2]

101 Switching Protocols

This means the requester has asked the server to switch protocols and the server is acknowledging that it will do so.^[2]

102 Processing (WebDAV; RFC 2518)

As a WebDAV request may contain many sub-requests involving file operations, it may take a long time to complete the request. This code indicates that the server has received and is processing the request, but no response is available yet.^[3] This prevents the client from timing out and assuming the request was lost.

2xx Success[edit]

This class of status codes indicates the action requested by the client was received, understood, accepted and processed successfully.

200 OK

Standard response for successful HTTP requests. The actual response will depend on the request method used. In a GET request, the response will contain an entity corresponding to the requested resource. In a POST request the response will contain an entity describing or containing the result of the action.^[2]

201 Created

The request has been fulfilled and resulted in a new resource being created.^[2]

202 Accepted

The request has been accepted for processing, but the processing has not been completed. The request might or might not eventually be acted upon, as it might be disallowed when processing actually takes place.^[2]

203 Non-Authoritative Information (since HTTP/1.1)

The server successfully processed the request, but is returning information that may be from another source.^[2]

204 No Content

The server successfully processed the request, but is not returning any content.^[2] Usually used as a response to a successful delete request.

205 Reset Content

The server successfully processed the request, but is not returning any content. Unlike a 204 response, this response requires that the requester reset the document view.^[2]

206 Partial Content

The server is delivering only part of the resource due to a range header sent by the client. The range header is used by tools like wget to enable resuming of interrupted downloads, or split a download into multiple simultaneous streams.^[2]

207 Multi-Status (WebDAV; RFC 4918)

The message body that follows is an XML message and can contain a number of separate response codes, depending on how many sub-requests were made.^[4]

208 Already Reported (WebDAV; RFC 5842)

The members of a DAV binding have already been enumerated in a previous reply to this request, and are not being included again.

226 IM Used (RFC 3229)

The server has fulfilled a GET request for the resource, and the response is a representation of the result of one or more instance-manipulations applied to the current instance.^[5]

3xx Redirection[edit]

The client must take additional action to complete the request.^[2]

This class of status code indicates that further action needs to be taken by the user agent to fulfil the request. The action required may be carried out by the user agent without interaction with the user if and only if the method used in the second request is GET or HEAD. A user agent should not automatically redirect a request more than five times, since such redirections usually indicate an infinite loop.

300 Multiple Choices

Indicates multiple options for the resource that the client may follow. It, for instance, could be used to present different format options for video, list files with different extensions, or word sense disambiguation.^[2]

301 Moved Permanently

This and all future requests should be directed to the given URI.^[2]

302 Found

This is an example of industry practice contradicting the standard.^[2] The HTTP/1.0 specification (RFC 1945) required the client to perform a temporary redirect (the original describing phrase was “Moved Temporarily”),^[6] but popular browsers implemented 302 with the functionality of a 303 See Other. Therefore, HTTP/1.1 added status codes 303 and 307 to distinguish between the two behaviours.^[7]However, some Web applications and frameworks use the 302 status code as if it were the 303.^[8]

303 See Other (since HTTP/1.1)

The response to the request can be found under another URI using a GET method. When received in response to a POST (or PUT/DELETE), it should be assumed that the server has received the data and the redirect should be issued with a separate GET message.^[2]

304 Not Modified

Indicates that the resource has not been modified since the version specified by the request headers If-Modified-Since or If-Match.^[2] This means that there is no need to retransmit the resource, since the client still has a previously-downloaded copy.

305 Use Proxy (since HTTP/1.1)

The requested resource is only available through a proxy, whose address is provided in the response.^[2] Many HTTP clients (such as Mozilla^[9] and Internet Explorer) do not correctly handle responses with this status code, primarily for security reasons.^{[citation needed]}

306 Switch Proxy

No longer used.^[2] Originally meant “Subsequent requests should use the specified proxy.”^[10]

307 Temporary Redirect (since HTTP/1.1)

In this case, the request should be repeated with another URI; however, future requests should still use the original URI.^[2] In contrast to how 302 was historically implemented, the request method is not allowed to be changed when reissuing the original request. For instance, a POST request should be repeated using another POST request.^[11]

308 Permanent Redirect (approved as experimental RFC)^[12]

The request, and all future requests should be repeated using another URI. 307 and 308 (as proposed) parallel the behaviours of 302 and 301, but do not allow the HTTP method to change. So, for example, submitting a form to a permanently redirected resource may continue smoothly.

4xx Client Error[edit]

The 4xx class of status code is intended for cases in which the client seems to have erred. Except when responding to a HEAD request, the server should include an entity containing an explanation of the error situation, and whether it is a temporary or permanent condition. These status codes are applicable to any request method. User agents should display any included entity to the user.

400 Bad Request

The request cannot be fulfilled due to bad syntax.^[2]

401 Unauthorized

Similar to 403 Forbidden, but specifically for use when authentication is required and has failed or has not yet been provided.^[2] The response must include a WWW-Authenticate header field containing a challenge applicable to the requested resource. See Basic access authentication and Digest access authentication.

402 Payment Required

Reserved for future use.^[2] The original intention was that this code might be used as part of some form of digital cash or micropayment scheme, but that has not happened, and this code is not usually used. As an example of its use, however, Apple’s defunct MobileMe service generated a 402 error if the MobileMe account was delinquent.^{[citation needed]} In addition, YouTube uses this status if a particular IP address has made excessive requests, and requires the person to enter a CAPTCHA.

403 Forbidden

The request was a valid request, but the server is refusing to respond to it.^[2] Unlike a 401 Unauthorized response, authenticating will make no difference.^[2] On servers where authentication is required, this commonly means that the provided credentials were successfully authenticated but that the credentials still do not grant the client permission to access the resource (e.g. a recognized user attempting to access restricted content).

404 Not Found

The requested resource could not be found but may be available again in the future.^[2] Subsequent requests by the client are permissible.

405 Method Not Allowed

A request was made of a resource using a request method not supported by that resource;^[2] for example, using GET on a form which requires data to be presented via POST, or using PUT on a read-only resource.

406 Not Acceptable

The requested resource is only capable of generating content not acceptable according to the Accept headers sent in the request.^[2]

407 Proxy Authentication Required

The client must first authenticate itself with the proxy.^[2]

408 Request Timeout

The server timed out waiting for the request.^[2] According to W3 HTTP specifications: “The client did not produce a request within the time that the server was prepared to wait. The client MAY repeat the request without modifications at any later time.”

409 Conflict

Indicates that the request could not be processed because of conflict in the request, such as an edit conflict in the case of multiple updates.^[2]

410 Gone

Indicates that the resource requested is no longer available and will not be available again.^[2] This should be used when a resource has been intentionally removed and the resource should be purged. Upon receiving a 410 status code, the client should not request the resource again in the future. Clients such as search engines should remove the resource from their indices. Most use cases do not require clients and search engines to purge the resource, and a “404 Not Found” may be used instead.

411 Length Required

The request did not specify the length of its content, which is required by the requested resource.^[2]

412 Precondition Failed

The server does not meet one of the preconditions that the requester put on the request.^[2]

413 Request Entity Too Large

The request is larger than the server is willing or able to process.^[2]

414 Request-URI Too Long

The URI provided was too long for the server to process.^[2] Often the result of too much data being encoded as a query-string of a GET request, in which case it should be converted to a POST request.

415 Unsupported Media Type

The request entity has a media type which the server or resource does not support.^[2] For example, the client uploads an image as image/svg+xml, but the server requires that images use a different format.

416 Requested Range Not Satisfiable

The client has asked for a portion of the file, but the server cannot supply that portion.^[2] For example, if the client asked for a part of the file that lies beyond the end of the file.^[2]

417 Expectation Failed

The server cannot meet the requirements of the Expect request-header field.^[2]

418 I’m a teapot (RFC 2324)

This code was defined in 1998 as one of the traditional IETF April Fools’ jokes, in RFC 2324, Hyper Text Coffee Pot Control Protocol, and is not expected to be implemented by actual HTTP servers.

419 Authentication Timeout (not in RFC 2616)

Not a part of the HTTP standard, 419 Authentication Timeout denotes that previously valid authentication has expired. It is used as an alternative to 401 Unauthorized in order to differentiate from otherwise authenticated clients being denied access to specific server resources.

420 Enhance Your Calm (Twitter)

Not part of the HTTP standard, but returned by the Twitter Search and Trends API when the client is being rate limited.^[13] Other services may wish to implement the 429 Too Many Requests response code instead.

422 Unprocessable Entity (WebDAV; RFC 4918)

The request was well-formed but was unable to be followed due to semantic errors.^[4]

423 Locked (WebDAV; RFC 4918)

The resource that is being accessed is locked.^[4]

424 Failed Dependency (WebDAV; RFC 4918)

The request failed due to failure of a previous request (e.g. a PROPPATCH).^[4]

424 Method Failure (WebDAV)^[14]

Indicates the method was not executed on a particular resource within its scope because some part of the method’s execution failed causing the entire method to be aborted.

425 Unordered Collection (Internet draft)

Defined in drafts of “WebDAV Advanced Collections Protocol”,^[15] but not present in “Web Distributed Authoring and Versioning (WebDAV) Ordered Collections Protocol”.^[16]

426 Upgrade Required (RFC 2817)

The client should switch to a different protocol such as TLS/1.0.^[17]

428 Precondition Required (RFC 6585)

The origin server requires the request to be conditional. Intended to prevent “the ‘lost update’ problem, where a client GETs a resource’s state, modifies it, and PUTs it back to the server, when meanwhile a third party has modified the state on the server, leading to a conflict.”^[18]

429 Too Many Requests (RFC 6585)

The user has sent too many requests in a given amount of time. Intended for use with rate limiting schemes.^[18]

431 Request Header Fields Too Large (RFC 6585)

The server is unwilling to process the request because either an individual header field, or all the header fields collectively, are too large.^[18]

444 No Response (Nginx)

Used in Nginx logs to indicate that the server has returned no information to the client and closed the connection (useful as a deterrent for malware).

449 Retry With (Microsoft)

A Microsoft extension. The request should be retried after performing the appropriate action.^[19]

Often search-engines or custom applications will ignore required parameters. Where no default action is appropriate, the Aviongoo website sends a “HTTP/1.1 449 Retry with valid parameters: param1, param2, . . .” response. The applications may choose to learn, or not.

450 Blocked by Windows Parental Controls (Microsoft)

A Microsoft extension. This error is given when Windows Parental Controls are turned on and are blocking access to the given webpage.^[20]

451 Unavailable For Legal Reasons (Internet draft)

Defined in the internet draft “A New HTTP Status Code for Legally-restricted Resources”.^[21] Intended to be used when resource access is denied for legal reasons, e.g. censorship or government-mandated blocked access. A reference to the 1953 dystopian novel Fahrenheit 451, where books are outlawed.^[22]

451 Redirect (Microsoft)

Used in Exchange ActiveSync if there either is a more efficient server to use or the server can’t access the users’ mailbox.^[23]

The client is supposed to re-run the HTTP Autodiscovery protocol to find a better suited server.^[24]

494 Request Header Too Large (Nginx)

Nginx internal code similar to 413 but it was introduced earlier.^{[25][original research?]}

495 Cert Error (Nginx)

Nginx internal code used when SSL client certificate error occurred to distinguish it from 4XX in a log and an error page redirection.

496 No Cert (Nginx)

Nginx internal code used when client didn’t provide certificate to distinguish it from 4XX in a log and an error page redirection.

497 HTTP to HTTPS (Nginx)

Nginx internal code used for the plain HTTP requests that are sent to HTTPS port to distinguish it from 4XX in a log and an error page redirection.

499 Client Closed Request (Nginx)

Used in Nginx logs to indicate when the connection has been closed by client while the server is still processing its request, making server unable to send a status code back.^[26]

5xx Server Error[edit]

The server failed to fulfill an apparently valid request.^[2]

Response status codes beginning with the digit “5” indicate cases in which the server is aware that it has encountered an error or is otherwise incapable of performing the request. Except when responding to a HEAD request, the server should include an entity containing an explanation of the error situation, and indicate whether it is a temporary or permanent condition. Likewise, user agents should display any included entity to the user. These response codes are applicable to any request method.

500 Internal Server Error

A generic error message, given when no more specific message is suitable.^[2]

501 Not Implemented

The server either does not recognize the request method, or it lacks the ability to fulfill the request.^[2] Usually this implies future availability (eg. a new feature of a web-service API).

502 Bad Gateway

The server was acting as a gateway or proxy and received an invalid response from the upstream server.^[2]

503 Service Unavailable

The server is currently unavailable (because it is overloaded or down for maintenance).^[2] Generally, this is a temporary state.

504 Gateway Timeout

The server was acting as a gateway or proxy and did not receive a timely response from the upstream server.^[2]

505 HTTP Version Not Supported

The server does not support the HTTP protocol version used in the request.^[2]

506 Variant Also Negotiates (RFC 2295)

Transparent content negotiation for the request results in a circular reference.^[27]

507 Insufficient Storage (WebDAV; RFC 4918)

The server is unable to store the representation needed to complete the request.^[4]

508 Loop Detected (WebDAV; RFC 5842)

The server detected an infinite loop while processing the request (sent in lieu of 208).

509 Bandwidth Limit Exceeded (Apache bw/limited extension)

This status code, while used by many servers, is not specified in any RFCs.

510 Not Extended (RFC 2774)

Further extensions to the request are required for the server to fulfil it.^[28]

511 Network Authentication Required (RFC 6585)

The client needs to authenticate to gain network access. Intended for use by intercepting proxies used to control access to the network (e.g. “captive portals” used to require agreement to Terms of Service before granting full Internet access via a Wi-Fi hotspot).^[18]

598 Network read timeout error (Unknown)

This status code is not specified in any RFCs, but is used by Microsoft HTTP proxies to signal a network read timeout behind the proxy to a client in front of the proxy.^{[citation needed]}

599 Network connect timeout error (Unknown)

This status code is not specified in any RFCs, but is used by Microsoft HTTP proxies to signal a network connect timeout behind the proxy to a client in front of the proxy.

D. Determine an HTTP request method for a given use case

HTTP defines methods (sometimes referred to as verbs) to indicate the desired action to be performed on the identified resource. What this resource represents, whether pre-existing data or data that is generated dynamically, depends on the implementation of the server. Often, the resource corresponds to a file or the output of an executable residing on the server.

The HTTP/1.0 specification^{[10]:section 8} defined the GET, POST and HEAD methods and the HTTP/1.1 specification^{[1]:section 9} added 5 new methods: OPTIONS, PUT, DELETE, TRACE and CONNECT. By being specified in these documents their semantics are well known and can be depended upon. Any client can use any method and the server can be configured to support any combination of methods. If a method is unknown to an intermediate it will be treated as an unsafe and non-idempotent method. There is no limit to the number of methods that can be defined and this allows for future methods to be specified without breaking existing infrastructure. For example WebDAV defined 7 new methods and RFC5789 specified the PATCH method.

GET

Requests a representation of the specified resource. Requests using GET should only retrieve data and should have no other effect. (This is also true of some other HTTP methods.)^[1] The W3C has published guidance principles on this distinction, saying, “Web application design should be informed by the above principles, but also by the relevant limitations.”^[11] See safe methods below.

HEAD

Asks for the response identical to the one that would correspond to a GET request, but without the response body. This is useful for retrieving meta-information written in response headers, without having to transport the entire content.

POST

Requests that the server accept the entity enclosed in the request as a new subordinate of the web resource identified by the URI. The data POSTed might be, as examples, an annotation for existing resources; a message for a bulletin board, newsgroup, mailing list, or comment thread; a block of data that is the result of submitting a web form to a data-handling process; or an item to add to a database.^[12]

PUT

Requests that the enclosed entity be stored under the supplied URI. If the URI refers to an already existing resource, it is modified; if the URI does not point to an existing resource, then the server can create the resource with that URI.^[13]

DELETE

Deletes the specified resource.

TRACE

Echoes back the received request so that a client can see what (if any) changes or additions have been made by intermediate servers.

OPTIONS

Returns the HTTP methods that the server supports for specified URL. This can be used to check the functionality of a web server by requesting ‘*’ instead of a specific resource.

CONNECT

Converts the request connection to a transparent TCP/IP tunnel, usually to facilitate SSL-encrypted communication (HTTPS) through an unencrypted HTTP proxy.^[14][15]

PATCH

Is used to apply partial modifications to a resource.^[16]

HTTP servers are required to implement at least the GET and HEAD methods^[17] and, whenever possible, also the OPTIONS method.

E. Explain the purpose and functionality of HTTP keepalives

F. Explain the purpose and functionality of HTTP headers

G. Explain the purpose and functionality of DNS

H. Explain the purpose and functionality of SIP

I. Explain the purpose and functionality of FTP

File Transfer Protocol (FTP) is a standard network protocol used to transfer files from one host to another host over a TCP-based network, such as the Internet.

FTP is built on a client-server architecture and uses separate control and data connections between the client and the server.^[1] FTP users may authenticate themselves using a clear-text sign-in protocol, normally in the form of a username and password, but can connect anonymously if the server is configured to allow it. For secure transmission that hides (encrypts) the username and password, and encrypts the content, FTP is often secured with SSL/TLS (“FTPS”). SSH File Transfer Protocol (“SFTP”) is sometimes also used instead, but is technologically different.

The first FTP client applications were command-line applications developed before operating systems had graphical user interfaces, and are still shipped with most Windows, Unix, and Linux operating systems.^[2][3] Dozens of FTP clients and automation utilities have since been developed for desktops, servers, mobile devices, and hardware, and FTP has been incorporated into hundreds of productivity applications, such as Web page editors.

J. Differentiate between passive and active FTP

FTP may run in active or passive mode, which determines how the data connection is established. In active mode, the client creates a TCP control connection. In situations where the client is behind a firewall and unable to accept incoming TCP connections, passive mode may be used. In this mode, the client uses the control connection to send a PASV command to the server and then receives a server IP address and server port number from the server, which the client then uses to open a data connection from an arbitrary client port to the server IP address and server port number received. Both modes were updated in September 1998 to support IPv6. Further changes were introduced to the passive mode at that time, updating it to extended passive mode.
K. Explain the purpose and functionality of SMTP

Simple Mail Transfer Protocol (SMTP) is an Internet standard for electronic mail (e-mail) transmission across Internet Protocol (IP) networks. SMTP was first defined by RFC 821 (1982, eventually declared STD 10),^[1] and last updated by RFC 5321 (2008)^[2] which includes the Extended SMTP (ESMTP) additions, and is the protocol in widespread use today.

SMTP uses TCP port 25. The protocol for new submissions (MSA) is effectively the same as SMTP, but it uses port 587 instead. SMTP connections secured bySSL are known by the shorthand SMTPS, though SMTPS is not a protocol in its own right.

While electronic mail servers and other mail transfer agents use SMTP to send and receive mail messages, user-level client mail applications typically use SMTP only for sending messages to a mail server for relaying. For receiving messages, client applications usually use either the Post Office Protocol (POP) or the Internet Message Access Protocol (IMAP) or a proprietary system (such as Microsoft Exchange or Lotus Notes/Domino) to access their mail box accounts on a mail server.

L. Explain the purpose and functionality of a cookie

A cookie, also known as an HTTP cookie, web cookie, or browser cookie, is a small piece of data sent from a website and stored in a user’s web browserwhile a user is browsing a website. When the user browses the same website in the future, the data stored in the cookie is sent back to the website by the browser to notify the website of the user’s previous activity.^[1] Cookies were designed to be a reliable mechanism for websites to remember the state of the website or activity the user had taken in the past. This can include clicking particular buttons, logging in, or a record of which pages were visited by the user even months or years ago.

Although cookies cannot carry viruses, and cannot install malware on the host computer,^[2] tracking cookies and especially third-party tracking cookies are commonly used as ways to compile long-term records of individuals’ browsing histories—a potential privacy concern that prompted European and US law makers to take action in 2011.^[3][4] Cookies can also store passwords and forms a user has previously entered, such as a credit card number or an address. When a user accesses a website with a cookie function for the first time, a cookie is sent from server to the browser and stored with the browser in the local computer. Later when that user goes back to the same website, the website will recognize the user because of the stored cookie with the user’s information.^[5]

Other kinds of cookies perform essential functions in the modern web. Perhaps most importantly, authentication cookies are the most common method used by web servers to know whether the user is logged in or not, and which account they are logged in under. Without such a mechanism, the site would not know whether to send a page containing sensitive information, or require the user to authenticate himself by logging in. The security of an authentication cookie generally depends on the security of the issuing website and the user’s web browser, and on whether the cookie data is encrypted. Security vulnerabilities may allow a cookie’s data to be read by a hacker, used to gain access to user data, or used to gain access (with the user’s credentials) to the website to which the cookie belongs (see cross-site scripting and cross-site request forgery for examples).

M. Given a situation in which a client connects to a remote host, explain how the name resolution process occurs

DNS Name Resolution Process

Resolution Process Steps

Now, suppose you are an employee within XYZ Industries and one of your clients is in charge of the networking department at Googleplex U. You type into your Web browser the address of this department’s Web server, “www.net.compsci.googleplex.edu”. In simplified terms, the procedure would involve the following set of steps (Figure 245 shows the process graphically):

1. Your Web browser recognizes the request for a name and invokes your local resolver, passing to it the name “www.net.compsci.googleplex.edu”.
2. The resolver checks its cache to see if it already has the address for this name. If it does, it returns it immediately to the Web browser, but in this case we are assuming that it does not. The resolver also checks to see if it has a local host table file. If so, it scans the file to see if this name has a static mapping. If so, it resolves the name using this information immediately. Again, let’s assume it does not, since that would be boring.
3. The resolver generates a recursive query and sends it to “ns1.xyzindustries.com” (using that server’s IP address, of course, which the resolver knows).
4. The local DNS server receives the request and checks its cache. Again, let’s assume it doesn’t have the information needed. If it did, it would return the information, marked “non-authoritative”, to the resolver. The server also checks to see if it has in its zone resource records that can resolve “www.net.compsci.googleplex.edu”. Of course it does not, in this case, since they are in totally different domains.
5. “ns1.xyzindustries.com” generates an iterative request for the name and sends it to a root name server.
6. The root name server does not resolve the name. It returns the name and address of the name server for the “.edu” domain.
7. “ns1.xyzindustries.com” generates an iterative request and sends it to the name server for “.edu”.
8. The name server for “.edu” returns the name and address of the name server for the “googleplex.edu” domain.
9. “ns1.xyzindustries.com” generates an iterative request and sends it to the name server for “googleplex.edu”.
10. The name server for “googleplex.edu” consults its resource records. It sees, however, that this name is in the “compsci.googleplex.edu” subdomain, which is in a separate zone. It returns the name server for that zone.
11. “ns1.xyzindustries.com” generates an iterative request and sends it to the name server for “compsci.googleplex.edu”.
12. The name server for “compsci.googleplex.edu” is authoritative for “www.net.compsci.googleplex.edu”. It returns the IP address for that host to “ns1.xyzindustries.com”.
13. “ns1.xyzindustries.com” caches this resolution. (Note that it will probably also cache some of the other name server resolutions that it received in steps #6, #8 and #10; I have not shown these explicitly.)
14. The local name server returns the resolution to the resolver on your local machine.
15. Your local resolver also caches the information.
16. The local resolver gives the address to your browser.
17. Your browser commences an HTTP request to the Googleplex machine’s IP address.


    Figure 245: Example Of The DNS Name Resolution Process

    This fairly complex example illustrates a typical DNS name resolution using both iterative and recursive resolution. The user types in a DNS name (“www.net.compsci.googleplex.edu”) into a Web browser, which causes a DNS resolution request to be made from her client machine’s resolver to a local DNS name server. That name server agrees to resolve the name recursively on behalf of the resolver, but uses iterative requests to accomplish it. These requests are sent to a DNS root name server, followed in turn by the name servers for “.edu”, “googleplex.edu” and ‘compsci.googleplex.edu”. The IP address is then passed to the local name server and then back to the user’s resolver and finally, her Web browser software.

Seems rather complicated and slow. Of course, computers work faster than you can read (or I can type, for that matter.) Even given that, the benefits of caching are obvious—if the name was in the cache of the resolver or the local DNS server, most of these steps would be avoided.

N. Explain the purpose and functionality of a URL

TCP segment structure

Processes transmit data by calling on the TCP and passing buffers of data as arguments. The TCP packages the data from these buffers into segments and calls on the internet module [e.g. IP] to transmit each segment to the destination TCP.^[5]

TCP Header

Offsets	Octet	0								1								2								3
Octet	Bit	0	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30	31
0	0	Source port																Destination port
4	32	Sequence number
8	64	Acknowledgment number (if ACK set)
12	96	Data offset				Reserved 0 0 0			N S	C W R	E C E	U R G	A C K	P S H	R S T	S Y N	F I N	Window Size
16	128	Checksum																Urgent pointer (if URG set)
20 …	160 ...	Options (if data offset > 5. Padded at the end with “0” bytes if necessary.) …

Source port (16 bits)

identifies the sending port

Destination port (16 bits)

identifies the receiving port

Sequence number (32 bits)

has a dual role:

• If the SYN flag is set (1), then this is the initial sequence number. The sequence number of the actual first data byte and the acknowledged number in the corresponding ACK are then this sequence number plus 1.
• If the SYN flag is clear (0), then this is the accumulated sequence number of the first data byte of this segment for the current session.

Acknowledgment number (32 bits)

if the ACK flag is set then the value of this field is the next sequence number that the receiver is expecting. This acknowledges receipt of all prior bytes (if any). The first ACK sent by each end acknowledges the other end’s initial sequence number itself, but no data.

Data offset (4 bits)

specifies the size of the TCP header in 32-bit words. The minimum size header is 5 words and the maximum is 15 words thus giving the minimum size of 20 bytes and maximum of 60 bytes, allowing for up to 40 bytes of options in the header. This field gets its name from the fact that it is also the offset from the start of the TCP segment to the actual data.

Reserved (3 bits)

for future use and should be set to zero

Flags (9 bits) (aka Control bits)

contains 9 1-bit flags

• NS (1 bit) – ECN-nonce concealment protection (added to header by RFC 3540).
• CWR (1 bit) – Congestion Window Reduced (CWR) flag is set by the sending host to indicate that it received a TCP segment with the ECE flag set and had responded in congestion control mechanism (added to header by RFC 3168).
• ECE (1 bit) – ECN-Echo indicates

• If the SYN flag is set (1), that the TCP peer is ECN capable.
• If the SYN flag is clear (0), that a packet with Congestion Experienced flag in IP header set is received during normal transmission (added to header by RFC 3168).

• URG (1 bit) – indicates that the Urgent pointer field is significant
• ACK (1 bit) – indicates that the Acknowledgment field is significant. All packets after the initial SYN packet sent by the client should have this flag set.
• PSH (1 bit) – Push function. Asks to push the buffered data to the receiving application.
• RST (1 bit) – Reset the connection
• SYN (1 bit) – Synchronize sequence numbers. Only the first packet sent from each end should have this flag set. Some other flags change meaning based on this flag, and some are only valid for when it is set, and others when it is clear.
• FIN (1 bit) – No more data from sender

Window size (16 bits)

the size of the receive window, which specifies the number of window size units (by default, bytes) (beyond the sequence number in the acknowledgment field) that the sender of this segment is currently willing to receive (see Flow control and Window Scaling)

Checksum (16 bits)

The 16-bit checksum field is used for error-checking of the header and data

Urgent pointer (16 bits)

if the URG flag is set, then this 16-bit field is an offset from the sequence number indicating the last urgent data byte

Options (Variable 0–320 bits, divisible by 32)

The length of this field is determined by the data offset field. Options have up to three fields: Option-Kind (1 byte), Option-Length (1 byte), Option-Data (variable). The Option-Kind field indicates the type of option, and is the only field that is not optional. Depending on what kind of option we are dealing with, the next two fields may be set: the Option-Length field indicates the total length of the option, and the Option-Data field contains the value of the option, if applicable. For example, an Option-Kind byte of 0x01 indicates that this is a No-Op option used only for padding, and does not have an Option-Length or Option-Data byte following it. An Option-Kind byte of 0 is the End Of Options option, and is also only one byte. An Option-Kind byte of 0x02 indicates that this is the Maximum Segment Size option, and will be followed by a byte specifying the length of the MSS field (should be 0x04). Note that this length is the total length of the given options field, including Option-Kind and Option-Length bytes. So while the MSS value is typically expressed in two bytes, the length of the field will be 4 bytes (+2 bytes of kind and length). In short, an MSS option field with a value of 0x05B4 will show up as (0x02 0x04 0x05B4) in the TCP options section.

Some options may only be sent when SYN is set; they are indicated below as ^[SYN]. Option-Kind and standard lengths given as (Option-Kind,Option-Length).

• 0 (8 bits) – End of options list
• 1 (8 bits) – No operation (NOP, Padding) This may be used to align option fields on 32-bit boundaries for better performance.
• 2,4,SS (32 bits) – Maximum segment size (see maximum segment size) ^[SYN]
• 3,3,S (24 bits) – Window scale (see window scaling for details) ^[SYN][6]
• 4,2 (16 bits) – Selective Acknowledgement permitted. ^[SYN] (See selective acknowledgments for details)^[7]
• 5,N,BBBB,EEEE,… (variable bits, N is either 10, 18, 26, or 34)- Selective ACKnowledgement (SACK)^[8] These first two bytes are followed by a list of 1–4 blocks being selectively acknowledged, specified as 32-bit begin/end pointers.
• 8,10,TTTT,EEEE (80 bits)- Timestamp and echo of previous timestamp (see TCP timestamps for details)^[9]
• 14,3,S (24 bits) – TCP Alternate Checksum Request. ^[SYN][10]
• 15,N,… (variable bits) – TCP Alternate Checksum Data.

(The remaining options are obsolete, experimental, not yet standardized, or unassigned)

Padding

The TCP header padding is used to ensure that the TCP header ends and data begins on a 32 bit boundary. The padding is composed of zeros.^[11]

[1-11] (https://en.wikipedia.org/wiki/Transmission_Control_Protocol)

Retransmission (data networks)

Stop-and-wait[edit|edit source]

Operations[edit]

1. Sender: Transmits a single frame at a time.
2. Receiver: Transmits acknowledgement (ACK) as it receives a frame.
3. Sender receive ACK within time out.
4. Go to step 1.

Pros and cons of stop and wait[edit]

Sliding Window[edit]

Go Back N[edit]

Selective Repeat[edit]

Comparison[edit]

Stop-and-wait[edit]

Selective Repeat[edit]

T=1/b

Transmit flow control[edit]

• between data terminal equipment (DTE) and a switching center, via data circuit-terminating equipment (DCE), the opposite types interconnected straightforwardly,
• or between two devices of the same type (two DTEs, or two DCEs), interconnected by a crossover cable.

• either stop-and-wait,
• or use a sliding window.

• either by control signal lines in a data communication interface (see serial port and RS 232),
• or by reserving in-band control characters to signal flow start and stop (such as the ASCII codes for XON/XOFF).

Hardware flow control[edit]

• RTS (Request To Send) and CTS (Clear To Send), used in RTS flow control
• DTR (Data Terminal Ready) and DSR (Data Set Ready), DTR flow control

• In the case of RTS control flow, DTE sets its RTS, which signals the opposite end (the slave end such as a DCE) to begin monitoring its data input line. When ready for data, the slave end will raise its complementary line, CTS in this example, which signals the master to start sending data, and for the master to begin monitoring the slave’s data output line. If either end needs to stop the data, it lowers its respective “data readyness” line.
• For PC-to-modem and similar links, in the case of DTR flow control, DTR/DSR are raised for the entire modem session (say a dialup internet call), and RTS/CTS are raised for each block of data.

Software flow control[edit]

Open-loop flow control[edit]

Closed-loop flow control[edit]

PC–radio flow control[edit]

A. Explain the purpose of the switch’s forwarding database.

Both bridges and switches build a forwarding database. The database is a list of Data Link (MAC) addresses and the port used to reach the device. Bridges and switches can automatically learn about devices to build the forwarding database. A network administrator can also program the device database manually. Bridges and switches use the following process to dynamically build the forwarding database:

Transparent bridges forward packets only if the following conditions are met.

How switches forward packets depends on the switch type. The following table compares the different methods the switch uses to forward packets (some Cisco switches support all three methods).

Note: Newer switches can monitor each port and determine which switching method to use. They can automatically change to store-and-forward if the number of errors on a port exceeds a configurable threshold.

B. Explain the purpose and functionality of ARP

C. Explain the purpose and functionality of MAC addresses

D. Explain the purpose and functionality of a broadcast domain.

E. Explain the purpose and functionality of VLANS

• production
• Voice over IP
• network management
• storage area network (SAN)
• guest network
• demilitarized zone (DMZ)

F. Explain the purpose and functionality of link aggregation

A. Describe the function of each OSI layer
B. Differentiate between the OSI layers

OSI Model Data Link Layer

Figure: The Data Link Layer Contains Two Sublayers

OSI Model Transport Layer

OSI Model Session Layer

OSI Model Presentation Layer

OSI Model Application Layer

Internetwork Addressing

Data Link Layer Addresses

Figure: Each Interface on a Device Is Uniquely Identified by a Data-Link Address

MAC Addresses

Figure: MAC Addresses, Data-Link Addresses, and the IEEE Sublayers of the Data Link Layer Are All Related

Figure: The MAC Address Contains a Unique Format of Hexadecimal Digits

Mapping Addresses

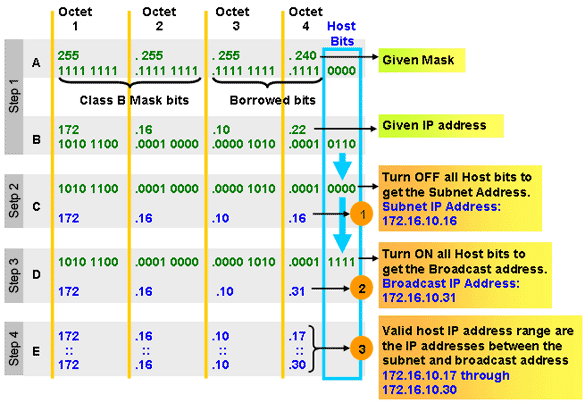

Network Layer Addresses

Figure: Each Network Interface Must Be Assigned a Network Address for Each Protocol Supported

Hierarchical Versus Flat Address Space

Figure: Hierarchical and Flat Address Spaces Differ in Comparison Operations

Address Assignments

Addresses Versus Names
